875 sq. ft. - Rear Courtyard Paver Patio Design with Pergola, Fireplace and Bar

Product Description

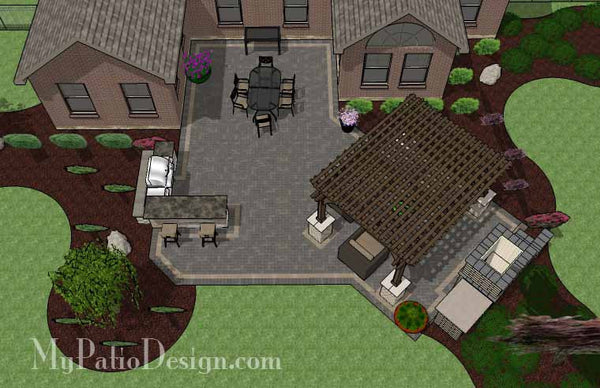

Designed for a "U" shaped house, our Rear Courtyard Paver Patio Design with Pergola, Fireplace and Bar is 875 square feet of enjoyable and all season outdoor living.  With a 12' x 16' cedar pergola shadowing a large seating area, you'll be able to use this patio all summer long. This seating area also features a beautiful and easy-to-build outdoor fireplace to create a warm ambiance you'll enjoy night after night after night.  And to make grilling more convenient and guest friendly we added a grill station with attached bar.

  • 875 sq. ft. of Outdoor Living Space.
  • Areas for Patio Table, Grilling and Seating in Front of Outdoor Fireplace.

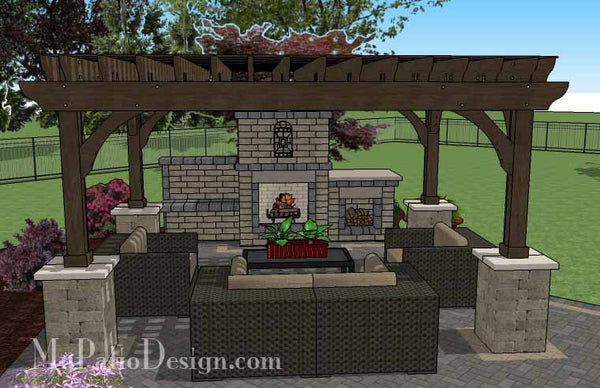

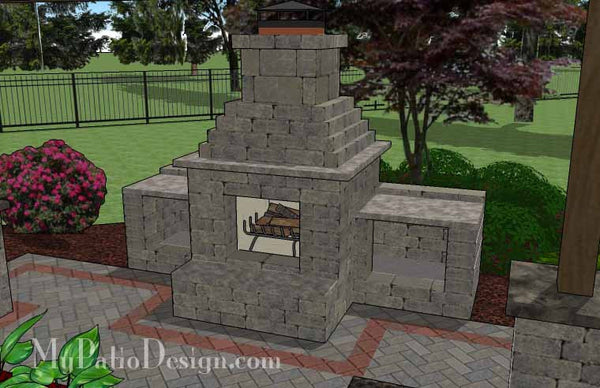

  • Outdoor Fireplace with Woodbox and Bench (plan included).  view outdoor fireplace design

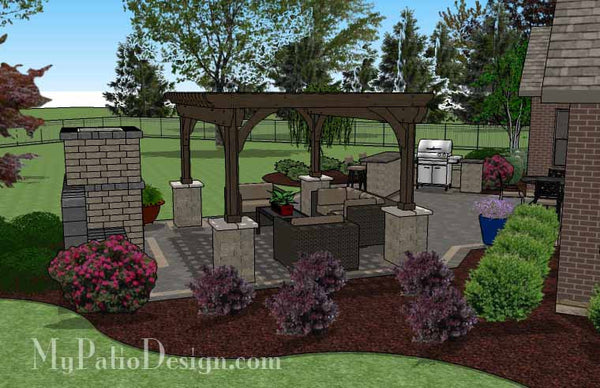

  • 12’ x 16’ Cedar Pergola with Column Wrapped Posts (plan included).  view cedar pergola design

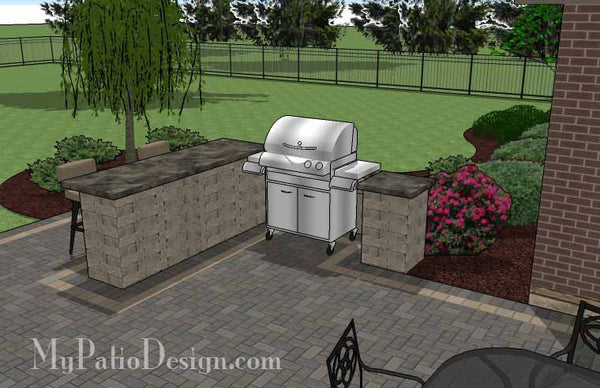

  • Grill Station with Bar for Roll Around Grills up to 60” Wide (plan included).  view grill station design
  • Designed for Courtyard or U Shaped Homes.
  • Colorful Pavers and Borders.
  • ​Patio Surface Laid with Any Style of Paver.
  • Landscaping Ideas!
  • 6 Large 3D Images of Patio and Landscaping.
  • Fully Dimensioned Layouts for Paver Patio, Cedar Pergola, Grill Station-Bar and Outdoor Fireplace.
  • Easy to Follow Paver Patio Installation Guide.
  • Step-by-Step Installation Instructions for Outdoor Fireplace, Cedar Pergola and Grill Station-Bar.
  • Itemized Material Lists for Paver Patio, Cedar Pergola, Grill Station-Bar and Outdoor Fireplace.
  • Paver Pattern Options.
  • Patio Cross Section Views.
$ 80

We make your patio project

 Simple.  Easy.  Affordable.



Large 3D views.





Realistic 3D Views.

Having the assurance of knowing precisely what your new outdoor living area will look like is important. That is why every patio design download from MyPatioDesign.com includes 4 to 8 large 3D views of the overall patio. No more guessing, because all of our patios and hardscape accessories are not only drawn to scale, but with the very same material you will install your beautiful patio with.






______________________________________________________________________________________________________________________________________________________________________________


Material Lists for patio and all hardscape accessories.





Material List.

When we created material lists for our designs, we thought of EVERYTHING.

A material list that provides quantities for every item and gives you the flexibility to make changes to any part of your project.

Want to change paver color?  style?  how about pattern?  No problem.

Since our 3D designs are not manufacture specific, you can choose any paver you like and it will fit right into our design.

Even a worksheet is designed into our material list so estimating is simple and easy.






______________________________________________________________________________________________________________________________________________________________________________



Patios and hardscape accessories are fully dimensioned.





Fully Dimensioned.

Having a few pretty pictures for ideas is a nice start, but having a full set of prints that are completely dimensioned is what you need.

All of our patios and hardscape accessories are fully dimensioned so you can install them to look exactly like the picture.

From layout to your completed installation, our fully dimensioned patios and hardscape accessories will get you there more quickly and more smoothly.







______________________________________________________________________________________________________________________________________________________________________________


All designs include how-to's.





How To's.

Installing a patio, an outdoor fireplace or even a kitchen can be a little intimidating and we completely understand. That's why we include step-by-step instructions on how to install the patio and ALL of the hardscape accessories.

We've applied our expertise to pictures, dimensions, and instructions to our designs so by the time you are ready to install, you'll know exactly what you are doing.






______________________________________________________________________________________________________________________________________________________________________________


Paver patterns, installation tips, cross sections and more.





And Much More...

To make our design packages complete and help you fully understand your patio project...

We also include cross section views so you have a better insight to elevations.

Paver pattern options to get the style you like.

And helpful installation tips and tricks to assist you along the way.

We even include a detailed guide on how to hire a paver contractor.






______________________________________________________________________________________________________________________________________________________________________________

 You Can Buy Material Anywhere!




Pavers

Pavers.

Our 3D paver patios are creatively designed to use any paver of your choice. Whether you live in New York, Florida, Texas, California or somewhere in between, your local hardscape supplier will have pavers to fit our design.

Your pattern...Our pattern...it doesn't matter. For your convenience we provide some popular paver patterns in every patio design, but don't be afraid to get creative and use your own.






______________________________________________________________________________________________________________________________________________________________________________


Tumbled Patio Block

Tumbled Patio Block.

When we sat down to design hardscape accessories, we chose a block that was beautiful, stylish, simple to install and most importantly, readily available.

All of our 3D hardscape accessories are designed with a 4" x 8" x 12" tumbled patio block that comes in assorted colors and is available at most suppliers of hardscape material.



______________________________________________________________________________________________________________________________________________________________________________

To make your patio or hardscape accessory construction process go as simple and efficient as possible we include the following in ALL of our downloadable plans.
  • Realistic 3D Aerial Views.
  • Full Dimensioned Layout of Patio and Hardscape Accessories.
  • Easy to Follow Paver Patio Installation Guide.
  • Cross Section Views.
  • Step-by-Step Installation How-to's for ALL Hardscape Accessories.
  • Itemized Material Lists for Patio and Hardscape Accessories.
  • Paver Pattern Options.
  • Installation Tips and Tricks.

Visit our What's Included page for more details of what your will receive in downloadable design packages.

After you complete the checkout process your design purchase(s) will immediately be emailed to you in a PDF file.  We recommend you immediately save this file(s) to your computer.
No worries, once you purchase a design you can re-download that design anytime.
All of our designs can be printed to a standard 8 1/2" x 11" sheet of paper.
If you have questions regarding how to download your design, please call us at 513-519-2416 or email us at designer@mypatiodesign.com and include your name and telephone number.  If you've already purchased or are going to purchase a design and would like expert advice regarding installation, please give us a call, we'll be glad to help.
Yes.  Our material list will let you choose any color or pattern you like.
The file you are downloading is not our actual design file, so you will not be able to make changes to it.  However, if you like a design and would like it modified, we can make those changes for you.  Note: The fee for design modification depends on the modification.
Due to the nature of this product, we are not able to provide refunds.  We offer a large preview of the design as well as a What's Included page that shows everything that is included to assist you in making an informed purchase.
Either.  If you'd like to install it yourself, please review our What's Included page and make sure you are comfortable with this type of project.  If you plan to hire a contractor to install your patio, the information included in the downloadable plan is perfect for soliciting apple-to-apple bids from local contractors.

Customer Reviews

Based on 84 reviews
90%
(76)
4%
(3)
2%
(2)
1%
(1)
2%
(2)
D
Dustysmom

Fast service and great communication! The plans are detailed and I was able to give to my contractor and HOA.

M
Mike Melenric
It's Ok

The plans are OK, the math however is off, by another. Not exactly helpful. The picture looks good but all in all the plans were less than helpful. You can do this without the over top plans

K
Karsein Campbell
Dream patio

Great very helpful will use again and recommend

C
Cassandra Woodard

200 sq. ft. - DIY Small Brick Patio Design

E
Eric Ervin
Great product

The simple overview and we'll thought out schematics can literally make anyone a DIY landscaper, all they need is time and patience
