Outdoor Entertainment Patio Design with Pergola and Bar

Product Description

The Patio Design.

With an array of fun and useful outdoor amenities, the Outdoor Entertainment Patio Design with Pergola and Bar is great place to spend time on.  Outdoor dining and grilling on this patio is an experience all in itself.  For starters, the 12’ x 16’ cedar pergola makes dining enjoyable during the hot summer months and covers the grilling area as well.  At the front of the pergola is the grill station that will make a beautiful home to your roll around barbecue grill.  And to give guest a place to rest during grill time, we attached an outdoor bar to the grill.  Cover the seating area by the back door with an oversized umbrella and it automatically becomes a resting spot any time of the day.  And when the sun goes down, the fire pit becomes the hot spot, roasting marsh mallows and just unwinding for the day.

  • 855 sq. ft. of Outdoor Living Space.
  • Seating Area, Outdoor Dining Area and Portable Fire Pit with Seating Area.
  • 24” Tall Seating Wall with 2 Columns.  Perfect for Overflow Seating and Privacy.
  • 12’ x 16’ Cedar Pergola with Columns Wrapping Each Post (plan included).  view cedar pergola design
  • Built-in Grill Station with Bar for Roll Around Grills up to 60” Wide.  Designed to Perfectly Fit Between 2 Pergola Posts (plan included).  view grill station design
  • Designed to Fit Corner Homes with Atlas a 10” Bump Out.
  • Colorful Pavers and Borders.
  • ​Patio Surface Laid with Any Style of Paver.
  • Landscaping Ideas!

Download Details.

  • 6 Large 3D Images of Patio and Landscaping.

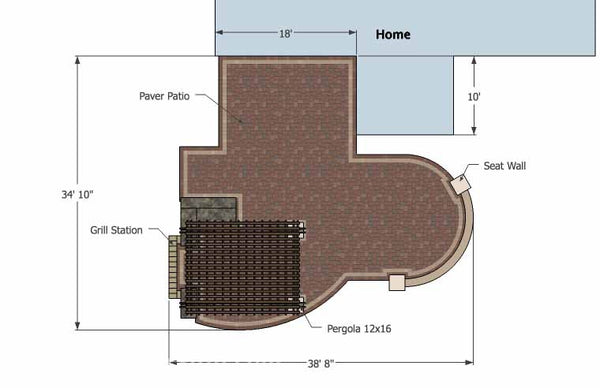

  • Fully Dimensioned Layouts for Paver Patio, Seat Wall, Pergola and Grill Station-Bar.
  • Easy to Follow Paver Patio and Seating Wall Installation Guides.
  • Step-by-Step Installation Instructions for Cedar Pergola and Grill Station-Bar.
  • Itemized Material Lists for Paver Patio, Grill Station-Bar, Cedar Pergola and Seating Walls.
  • Paver Pattern Options.
  • Patio Cross Section Views.
$ 55

We make your patio project

 Simple.  Easy.  Affordable.


Large 3D views.

Realistic 3D Views.

Having the assurance of knowing precisely what your new outdoor living area will look like is important. That is why every patio design download from MyPatioDesign.com includes 4 to 8 large 3D views of the overall patio. No more guessing, because all of our patios and hardscape accessories are not only drawn to scale, but with the very same material you will install your beautiful patio with.


Material Lists for patio and all hardscape accessories.

Material List.

When we created material lists for our designs, we thought of EVERYTHING.

A material list that provides quantities for every item and gives you the flexibility to make changes to any part of your project.

Want to change paver color?  style?  how about pattern?  No problem.

Since our 3D designs are not manufacture specific, you can choose any paver you like and it will fit right into our design.

Even a worksheet is designed into our material list so estimating is simple and easy.


Patios and hardscape accessories are fully dimensioned.

Fully Dimensioned.

Having a few pretty pictures for ideas is a nice start, but having a full set of prints that are completely dimensioned is what you need.

All of our patios and hardscape accessories are fully dimensioned so you can install them to look exactly like the picture.

From layout to your completed installation, our fully dimensioned patios and hardscape accessories will get you there more quickly and more smoothly.


All designs include how-to's.

How To's.

Installing a patio, an outdoor fireplace or even a kitchen can be a little intimidating and we completely understand. That's why we include step-by-step instructions on how to install the patio and ALL of the hardscape accessories.

We've applied our expertise to pictures, dimensions, and instructions to our designs so by the time you are ready to install, you'll know exactly what you are doing.


Paver patterns, installation tips, cross sections and more.

And Much More...

To make our design packages complete and help you fully understand your patio project...

We also include cross section views so you have a better insight to elevations.

Paver pattern options to get the sale you like.

And helpful installation tips and tricks to assist you along the way.

We even include a detailed guide on ho to hire a paver contractor.


 You Can Buy Material Anywhere!




Our 3D paver patios are creatively designed to use any paver of your choice. Whether you live in New York, Florida, Texas, California or somewhere in between, your local hardscape supplier will have pavers to fit our design.

Your pattern...Our pattern...it doesn't matter. For your convenience we provide some popular paver patterns in every patio design, but don't be afraid to get creative and use your own.


Tumbled Patio Block

Tumbled Patio Block.

When we sat down to design hardscape accessories, we chose a block that was beautiful, stylish, simple to install and most importantly, readily available.

All of our 3D hardscape accessories are designed with a 4" x 8" x 12" tumbled patio block that comes in assorted colors and is available at most suppliers of hardscape material.


Related Products
