700 sq. ft. - Creative Brick Patio Design with Pergola, Fire Pit and Bar

Product Description

Our Creative Brick Patio Design with Pergola, Bar and Fire Pit was created to make life out back much more enjoyable and relaxing.  We make this fabulous outdoor space much more simple and affordable to construct with our downloadable patio plan.  From start to finish we will guide you along with realistic 3D images, installation instructions and fully dimensioned layouts.  So now, you’ll know without a doubt how to install the 700 square foot paver patio, 12’ x 14’ cedar pergola, grill station/bar that nest any roll around grill up to 60” wide, 56” square built-in fire pit and the two 24” tall seating walls with columns.  Where can I buy pavers and block for the patio and all the hardscape accessories?

We also make estimating and ordering product quick and accurate with our itemized material list saving you lots of frustration and time.  And one of the great features about our material list is it allows you to personalize this patio design by allowing you to choose colors, patterns and styles.

The downloadable patio plan will help contractors provide their customers with a beautiful 3D patio design and make estimating quick and simple.  And if you’re a homeowner, use the plan to build the patio yourself.  Or solicit 2-3 contractors in your area for apple-to-apple bids, giving you assurance that your project will be on budget, run more smoothly and finish on time.  Learn more about what is included in the downloadable patio plan.

  • Downloadable PDF File.  (print to standard 8 1/2" x 11" paper)

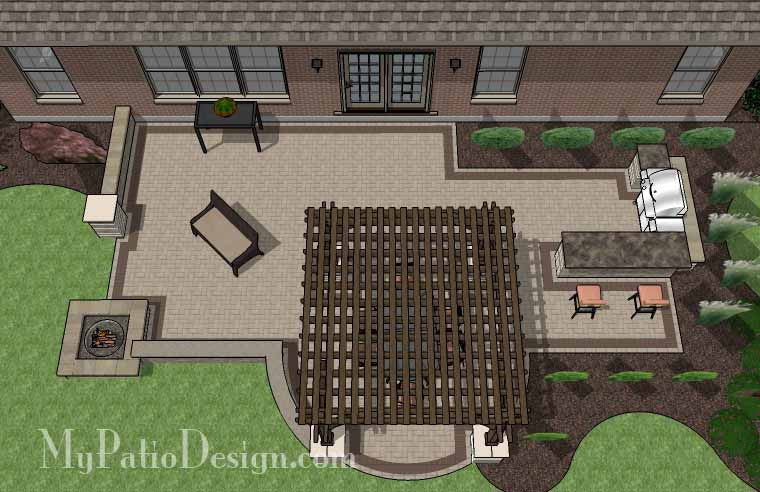

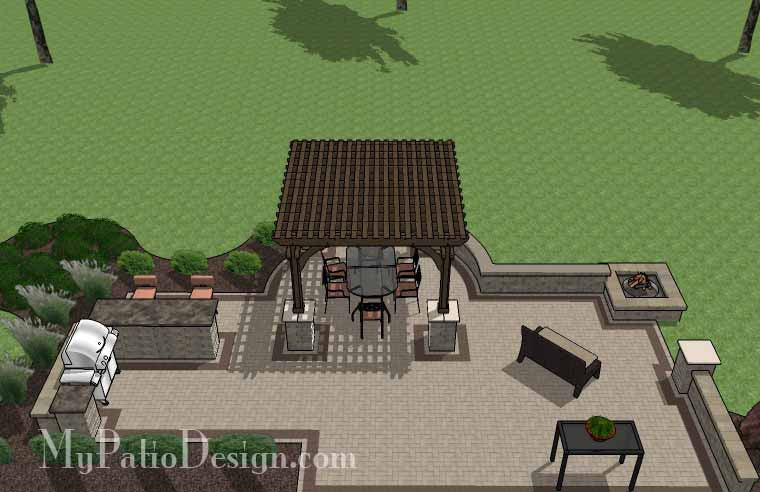

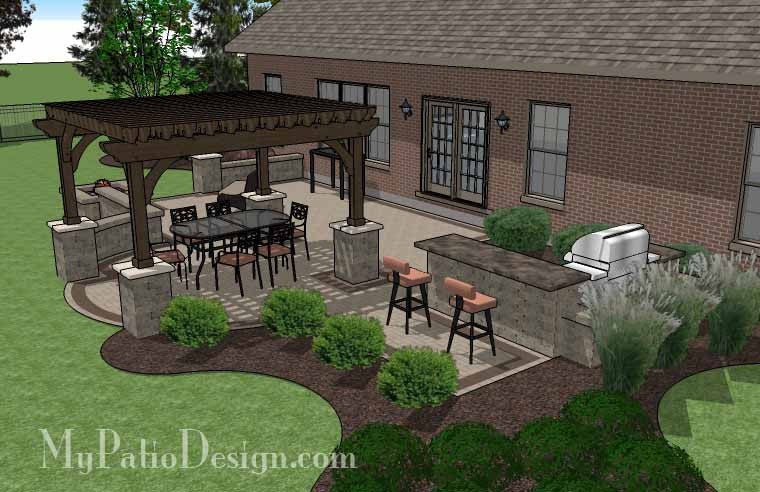

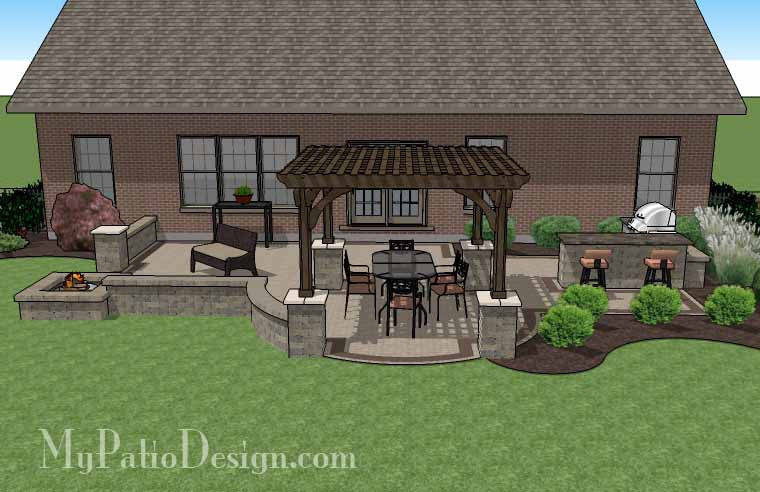

  • 6 Large 3D Images of Patio and Landscaping.

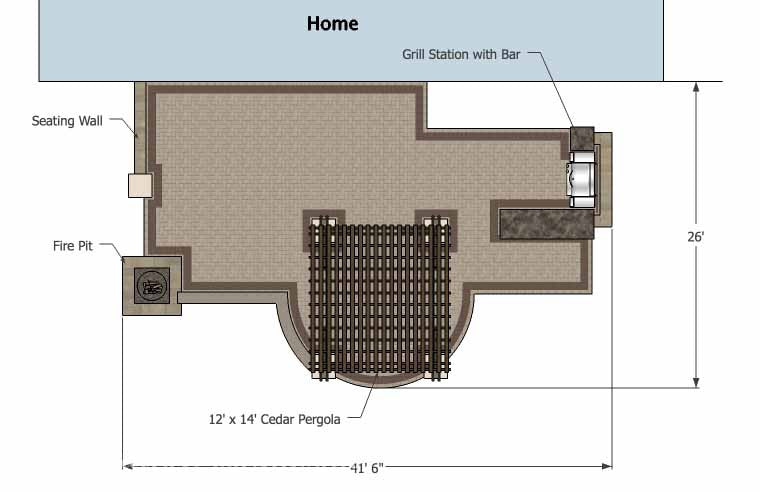

  • Fully Dimensioned Layouts for Paver Patio, Cedar Pergola, Grill Station-Bar, Fire Pit and Seating Wall.
  • Easy to Follow Paver Patio and Seating Wall Installation Guides.
  • Step-by-Step Instructions to Install Fire Pit, Grill Station-Bar and Cedar Pergola.
  • Itemized Material Lists for Paver Patio, Cedar Pergola, Fire Pit, Grill Station-Bar and Seating Wall.
  • Paver Pattern Options.
  • Patio Cross Section Views.
  • Where can I purchase pavers and block for this patio design?
  • What all is included in the downloadable plan?
  • 700 sq. ft. of Outdoor Living Space.
  • Patio Designed to Fit Straight Rear Homes.
  • ​Patio Surface Laid with Any Style of Paver.
  • Areas for Outdoor Dining, Grilling and Fire Pit with Seating.
  • 12’ x 14’ Cedar Pergola with Column Wrapped Posts (plan included).  view cedar pergola design

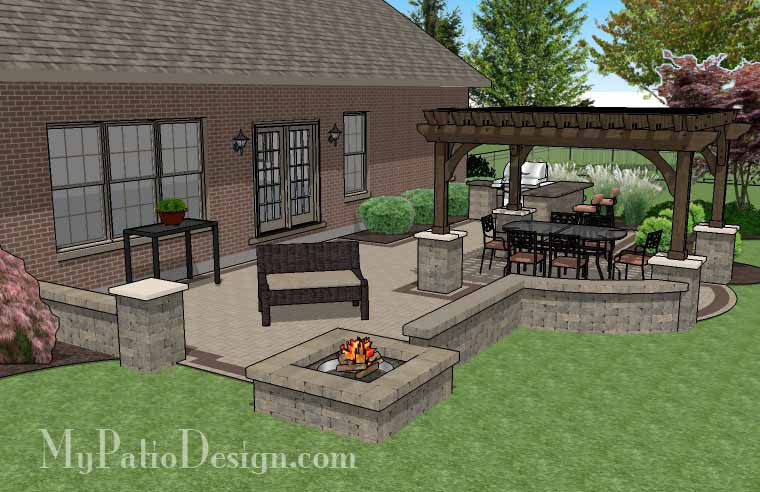

  • Built-In 56” Square Fire Pit (plan included).  view fire pit design

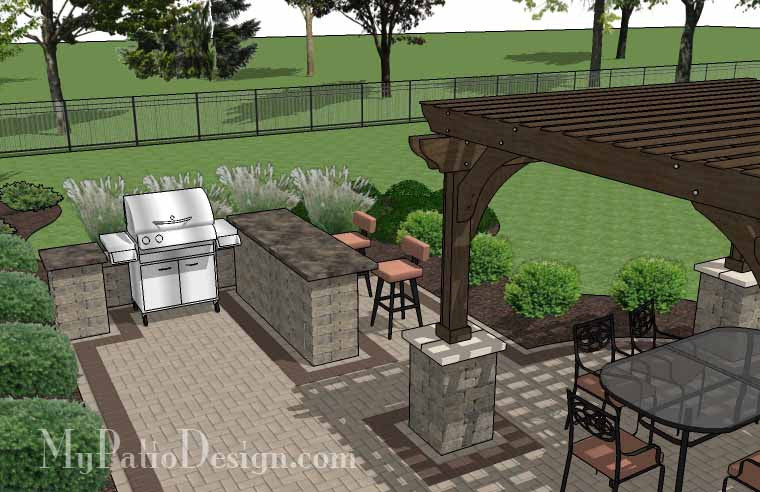

  • Grill Station with Bar for Roll Around Grills up to 60” Wide (plan included).  view grill station-bar design

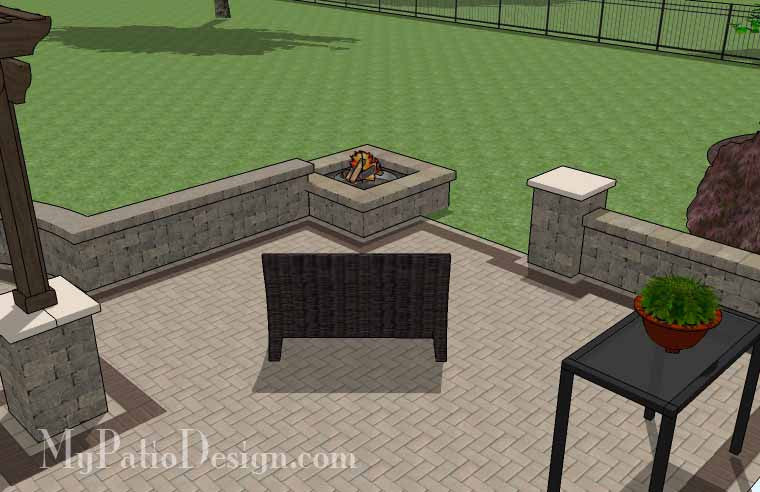

  • 24” Tall Seating Wall with 2 Columns.
  • Grill Station with Bar, Seat Walls, Columns and Fire Pit Designed Using 4" x 8" x 12" Tumbled Patio Block.
  • Colorful Paver Borders.
  • Landscaping Ideas!
    $ 80

    We make your patio project

     Simple.  Easy.  Affordable.


    Large 3D views.

    Realistic 3D Views.

    Having the assurance of knowing precisely what your new outdoor living area will look like is important. That is why every patio design download from MyPatioDesign.com includes 4 to 8 large 3D views of the overall patio. No more guessing, because all of our patios and hardscape accessories are not only drawn to scale, but with the very same material you will install your beautiful patio with.


    Material Lists for patio and all hardscape accessories.

    Material List.

    When we created material lists for our designs, we thought of EVERYTHING.

    A material list that provides quantities for every item and gives you the flexibility to make changes to any part of your project.

    Want to change paver color?  style?  how about pattern?  No problem.

    Since our 3D designs are not manufacture specific, you can choose any paver you like and it will fit right into our design.

    Even a worksheet is designed into our material list so estimating is simple and easy.


    Patios and hardscape accessories are fully dimensioned.

    Fully Dimensioned.

    Having a few pretty pictures for ideas is a nice start, but having a full set of prints that are completely dimensioned is what you need.

    All of our patios and hardscape accessories are fully dimensioned so you can install them to look exactly like the picture.

    From layout to your completed installation, our fully dimensioned patios and hardscape accessories will get you there more quickly and more smoothly.


    All designs include how-to's.

    How To's.

    Installing a patio, an outdoor fireplace or even a kitchen can be a little intimidating and we completely understand. That's why we include step-by-step instructions on how to install the patio and ALL of the hardscape accessories.

    We've applied our expertise to pictures, dimensions, and instructions to our designs so by the time you are ready to install, you'll know exactly what you are doing.


    Paver patterns, installation tips, cross sections and more.

    And Much More...

    To make our design packages complete and help you fully understand your patio project...

    We also include cross section views so you have a better insight to elevations.

    Paver pattern options to get the style you like.

    And helpful installation tips and tricks to assist you along the way.

    We even include a detailed guide on how to hire a paver contractor.


     You Can Buy Material Anywhere!




    Our 3D paver patios are creatively designed to use any paver of your choice. Whether you live in New York, Florida, Texas, California or somewhere in between, your local hardscape supplier will have pavers to fit our design.

    Your pattern...Our pattern...it doesn't matter. For your convenience we provide some popular paver patterns in every patio design, but don't be afraid to get creative and use your own.


    Tumbled Patio Block

    Tumbled Patio Block.

    When we sat down to design hardscape accessories, we chose a block that was beautiful, stylish, simple to install and most importantly, readily available.

    All of our 3D hardscape accessories are designed with a 4" x 8" x 12" tumbled patio block that comes in assorted colors and is available at most suppliers of hardscape material.


    To make your patio or hardscape accessory construction process go as simple and efficient as possible we include the following in ALL of our downloadable plans.
    • Realistic 3D Aerial Views.
    • Full Dimensioned Layout of Patio and Hardscape Accessories.
    • Easy to Follow Paver Patio Installation Guide.
    • Cross Section Views.
    • Step-by-Step Installation How-to's for ALL Hardscape Accessories.
    • Itemized Material Lists for Patio and Hardscape Accessories.
    • Paver Pattern Options.
    • Installation Tips and Tricks.

    Visit our What's Included page for more details of what your will receive in downloadable design packages.

    After you complete the checkout process your design purchase(s) will immediately be emailed to you in a PDF file.  We recommend you immediately save this file(s) to your computer.
    No worries, once you purchase a design you can re-download that design anytime.
    All of our designs can be printed to a standard 8 1/2" x 11" sheet of paper.
    If you have questions regarding how to download your design, please call us at 513-519-2416 or email us at designer@mypatiodesign.com and include your name and telephone number.  If you've already purchased or are going to purchase a design and would like expert advice regarding installation, please give us a call, we'll be glad to help.
    Yes.  Our material list will let you choose any color or pattern you like.
    The file you are downloading is not our actual design file, so you will not be able to make changes to it.  However, if you like a design and would like it modified, we can make those changes for you.  Note: The fee for design modification depends on the modification.
    Due to the nature of this product, we are not able to provide refunds.  We offer a large preview of the design as well as a What's Included page that shows everything that is included to assist you in making an informed purchase.
    Either.  If you'd like to install it yourself, please review our What's Included page and make sure you are comfortable with this type of project.  If you plan to hire a contractor to install your patio, the information included in the downloadable plan is perfect for soliciting apple-to-apple bids from local contractors.

    Customer Reviews

    Based on 84 reviews

    Fast service and great communication! The plans are detailed and I was able to give to my contractor and HOA.

    Mike Melenric
    It's Ok

    The plans are OK, the math however is off, by another. Not exactly helpful. The picture looks good but all in all the plans were less than helpful. You can do this without the over top plans

    Karsein Campbell
    Dream patio

    Great very helpful will use again and recommend

    Cassandra Woodard

    200 sq. ft. - DIY Small Brick Patio Design

    Eric Ervin
    Great product

    The simple overview and we'll thought out schematics can literally make anyone a DIY landscaper, all they need is time and patience
