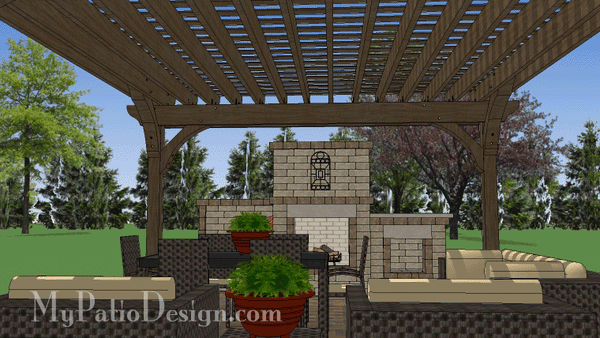

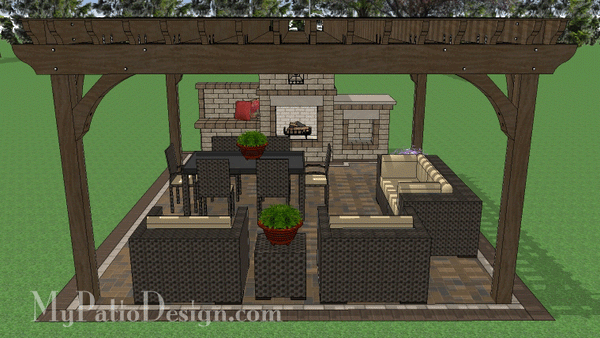

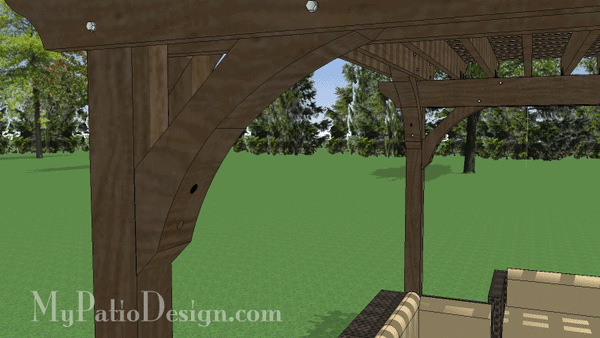

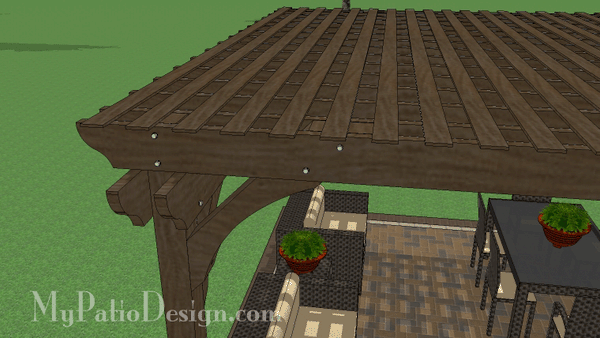

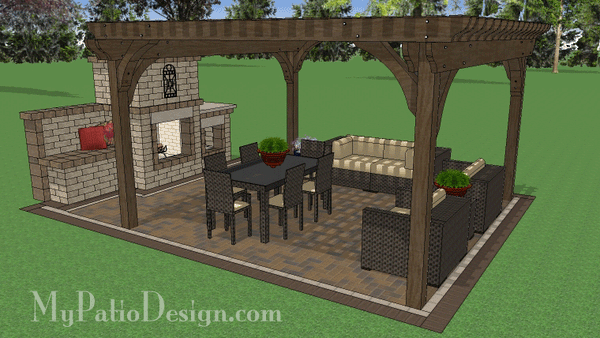

16' x 16' Cedar Pergola Design
We make your patio project
Simple. Easy. Affordable.
Realistic 3D Views.
Having the assurance of knowing precisely what your new outdoor living area will look like is important. That is why every patio design download from MyPatioDesign.com includes 4 to 8 large 3D views of the overall patio. No more guessing, because all of our patios and hardscape accessories are not only drawn to scale, but with the very same material you will install your beautiful patio with.
When we created material lists for our designs, we thought of EVERYTHING.
A material list that provides quantities for every item and gives you the flexibility to make changes to any part of your project.
Want to change paver color? style? how about pattern? No problem.
Since our 3D designs are not manufacture specific, you can choose any paver you like and it will fit right into our design.
Even a worksheet is designed into our material list so estimating is simple and easy.
Having a few pretty pictures for ideas is a nice start, but having a full set of prints that are completely dimensioned is what you need.
All of our patios and hardscape accessories are fully dimensioned so you can install them to look exactly like the picture.
From layout to your completed installation, our fully dimensioned patios and hardscape accessories will get you there more quickly and more smoothly.
Installing a patio, an outdoor fireplace or even a kitchen can be a little intimidating and we completely understand. That's why we include step-by-step instructions on how to install the patio and ALL of the hardscape accessories.
We've applied our expertise to pictures, dimensions, and instructions to our designs so by the time you are ready to install, you'll know exactly what you are doing.
And Much More...
To make our design packages complete and help you fully understand your patio project...
We also include cross section views so you have a better insight to elevations.
Paver pattern options to get the style you like.
And helpful installation tips and tricks to assist you along the way.
We even include a detailed guide on how to hire a paver contractor.
You Can Buy Material Anywhere!
Our 3D paver patios are creatively designed to use any paver of your choice. Whether you live in New York, Florida, Texas, California or somewhere in between, your local hardscape supplier will have pavers to fit our design.
Your pattern...Our pattern...it doesn't matter. For your convenience we provide some popular paver patterns in every patio design, but don't be afraid to get creative and use your own.
Tumbled Patio Block.
When we sat down to design hardscape accessories, we chose a block that was beautiful, stylish, simple to install and most importantly, readily available.
All of our 3D hardscape accessories are designed with a 4" x 8" x 12" tumbled patio block that comes in assorted colors and is available at most suppliers of hardscape material.
- Realistic 3D Aerial Views.
- Full Dimensioned Layout of Patio and Hardscape Accessories.
- Easy to Follow Paver Patio Installation Guide.
- Cross Section Views.
- Step-by-Step Installation How-to's for ALL Hardscape Accessories.
- Itemized Material Lists for Patio and Hardscape Accessories.
- Paver Pattern Options.
- Installation Tips and Tricks.
Visit our What's Included page for more details of what your will receive in downloadable design packages.
